Speedway Fab 9” rear end

It’s free shipping in the United States. Canada will have an extra freight fee of around $300.00.

The 56” rear end is what I’m using to run 12” wide wheels with a 3.5” backspacing. These wheels have a 7.” deep lip. Outside of tire to outside of tire measures 75”.

Bearings and seals are already pressed onto the 31 spline axles. Axles are cut to fit, and you can easily cut them with a cut off wheel or bandsaw. Axles are triple drilled for 5x4.5, 5x4.75, snd 5x5 bolt pattern. The rear ends come with “cut to fit” axles.

Axle housings are New Style Large Ford Torino. I have the Wilwood brakes available that are 5x5 bolt pattern and bolt to this rear end.

If you are running coil overs the 56” rear end will give you around an inch of clearance between the brake caliper and coil over.

The trailing arm mounting pads we offer will NOT work with leaf spring suspension.

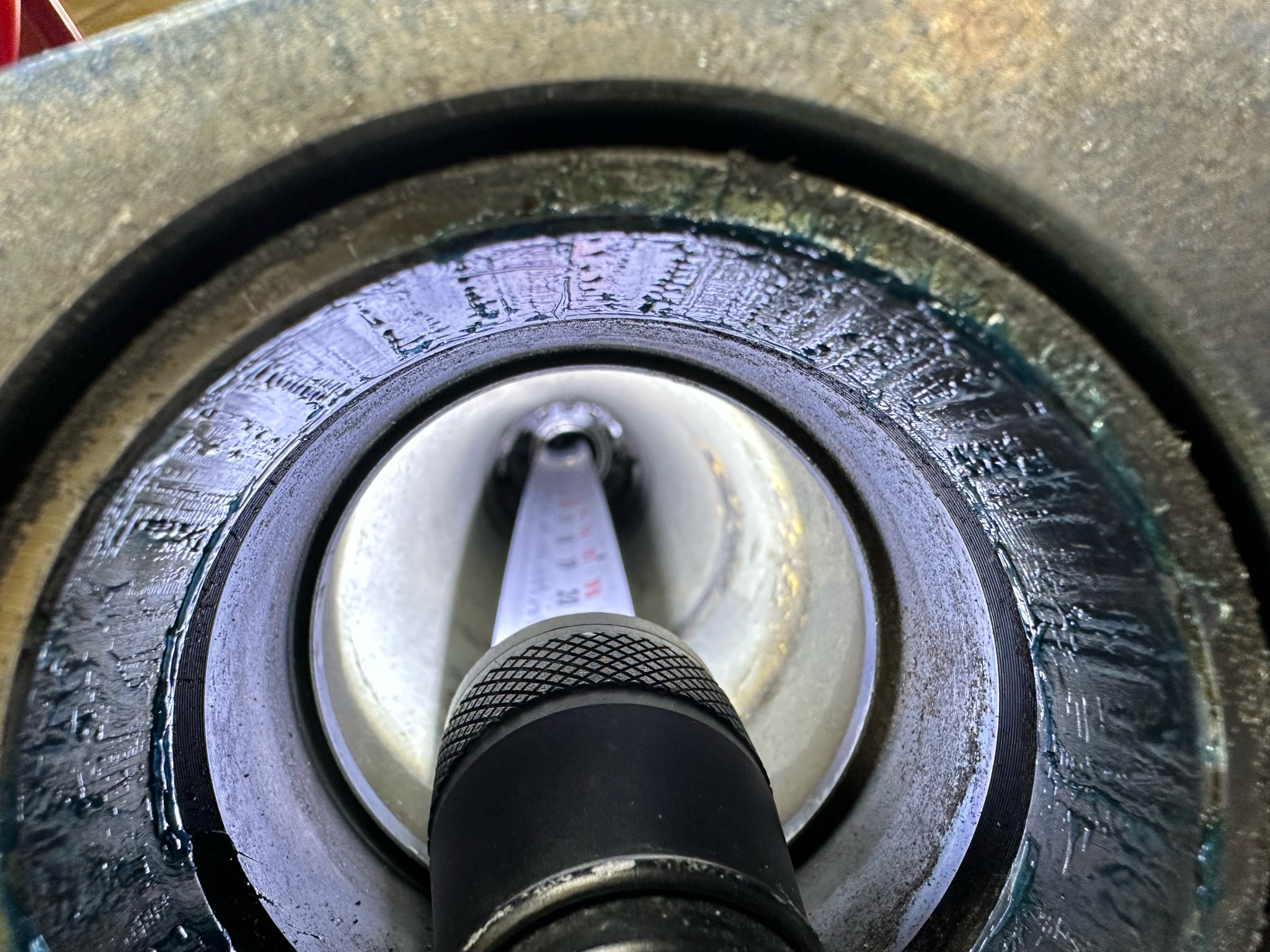

 You can hook a tape measure onto the end of the splines in the 3rd member, then measure to the end of the housing to get a measurement to cut the axle.

On the drivers side of the third member there are two splined collars. The splines on the axle must engage with both of them. If they aren’t lined up, you will need to line them up. After you feel the axle slide through both of them, you can measure the axle “stick out” to know how much needs to be cut off.

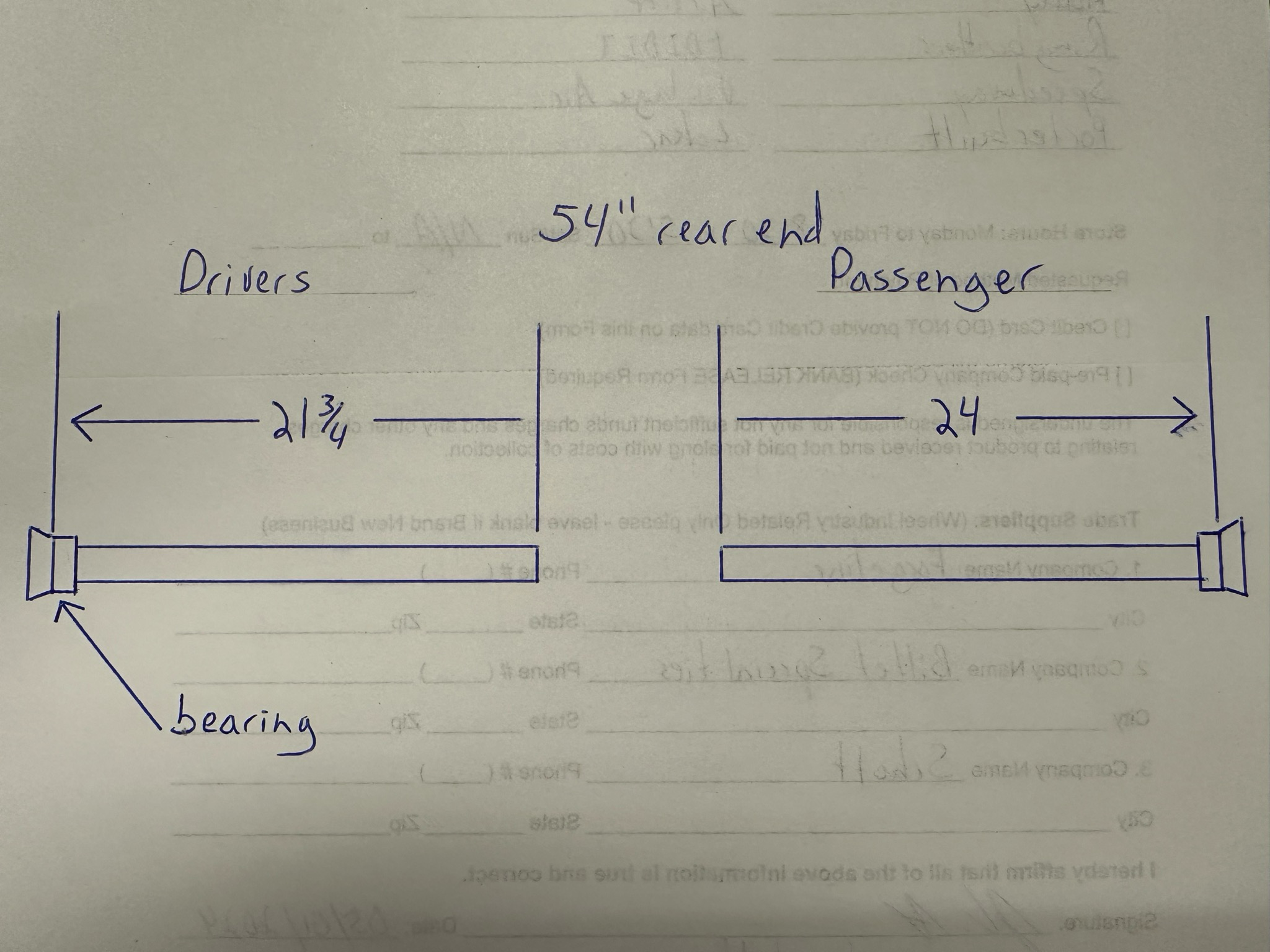

These are the lengths that I cut my axles for my 54” rear end. The measurement is from between the bearing and the press on sleeve, to the end of the axle.

Drivers side 21 3/4

Passenger side 24
