No Limit C10 Rack And Pinion Steering Kit (Drop Shipped Item)

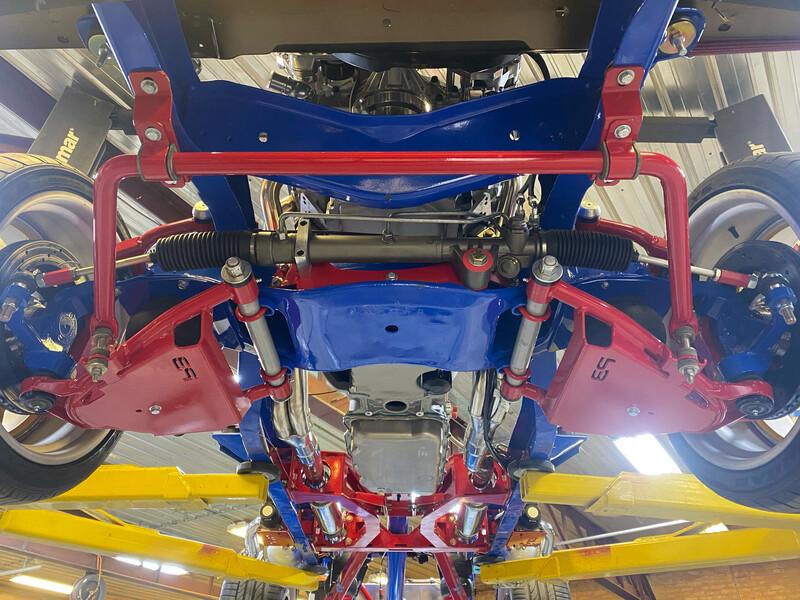

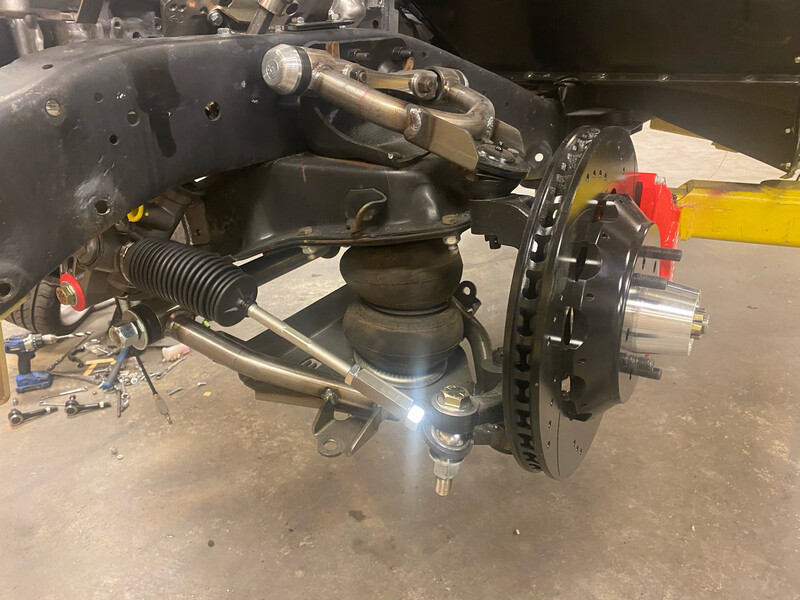

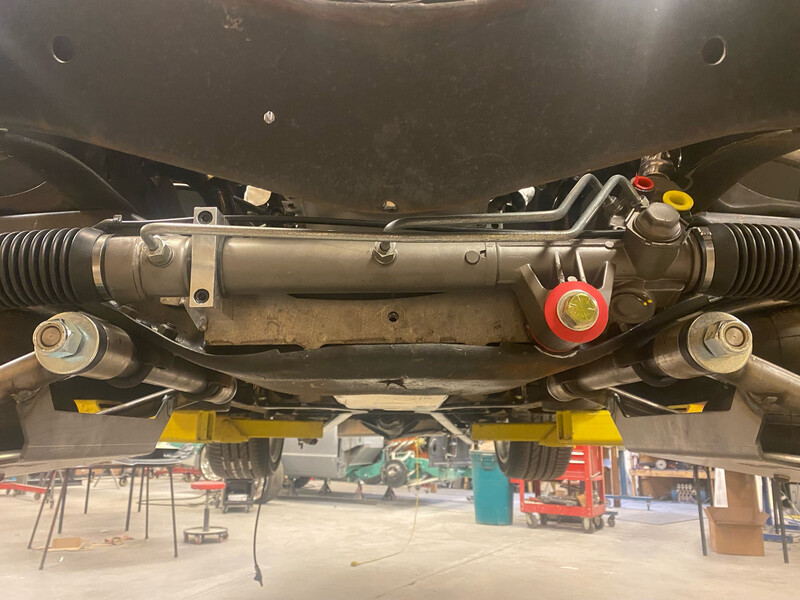

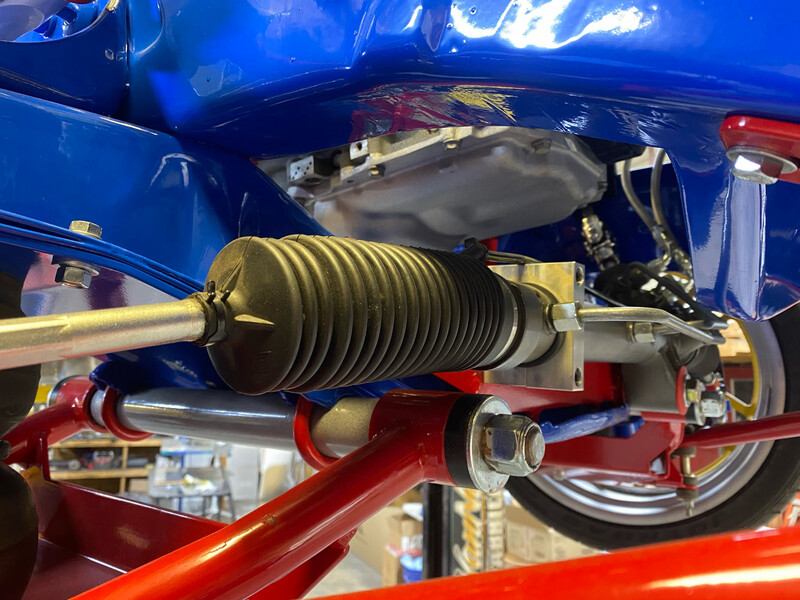

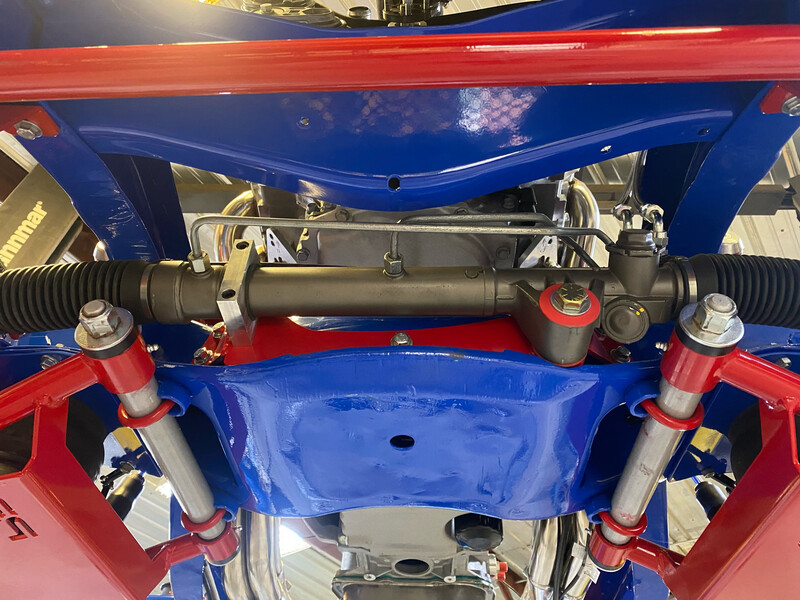

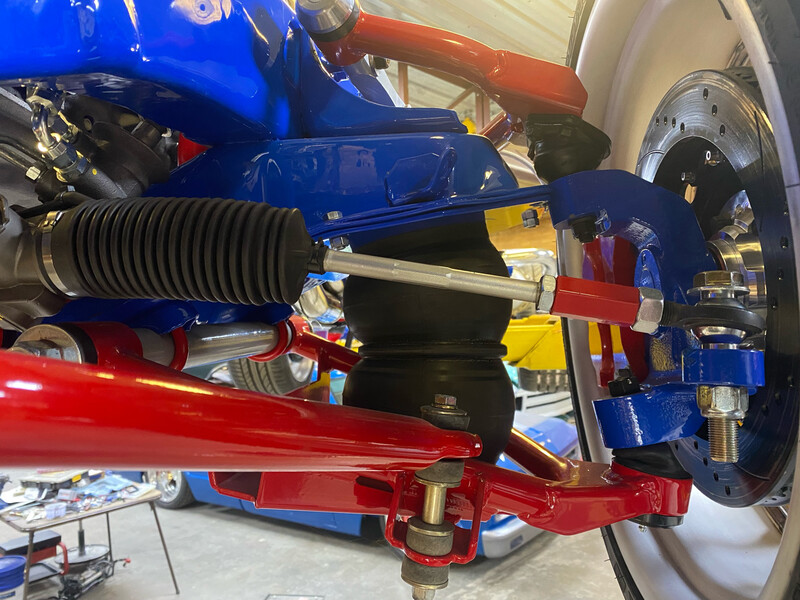

The No Limit 1963-72 C10 rack and pinion kit uses a Silverado rack so your C10’s steering will perform like a new truck. I’ve tested this rack on my truck and it doesn’t suffer from any bump steer issues throughout its 10” of travel with the air suspension. I highly recommend this rack for anyone wanting a high performance, modern steering system at a great price. It also has a ton of header clearance. It took me exactly two hours to install the kit. The kit comes with everything you see in the pics.

The fittings needed for the rack are 16x1.5mm and 18x1.5mm. The Conceptone power steering line works perfectly with the No Limit rack and is sold separately on my website.

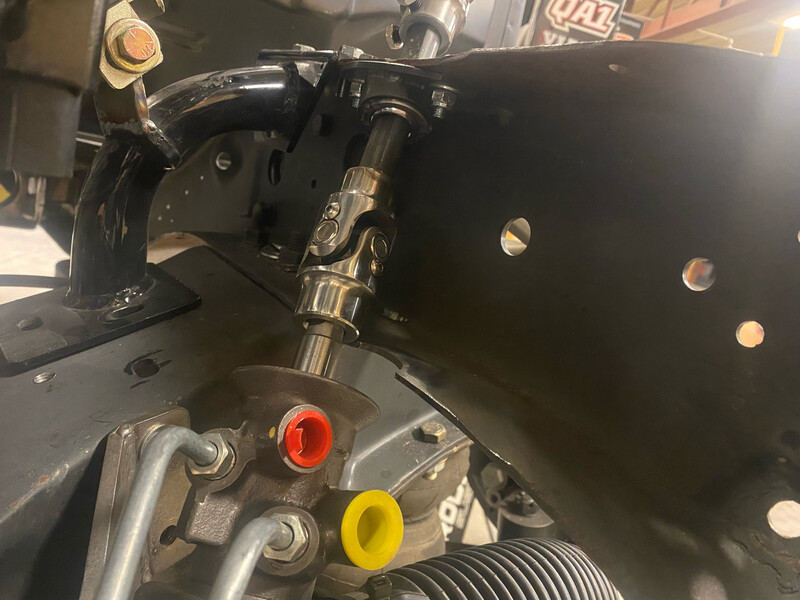

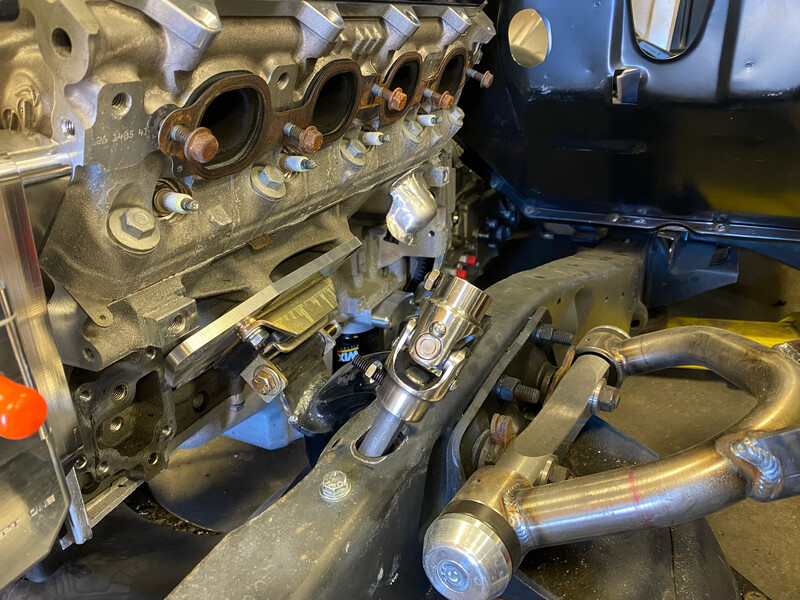

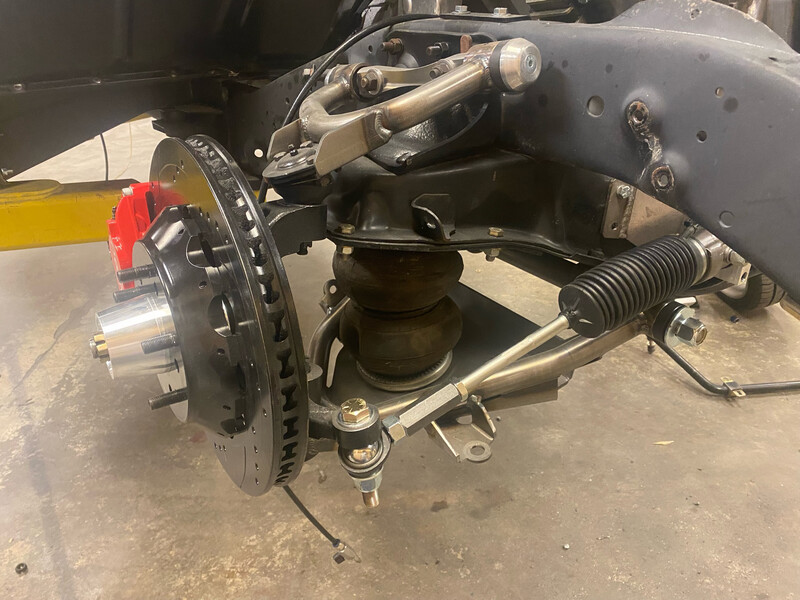

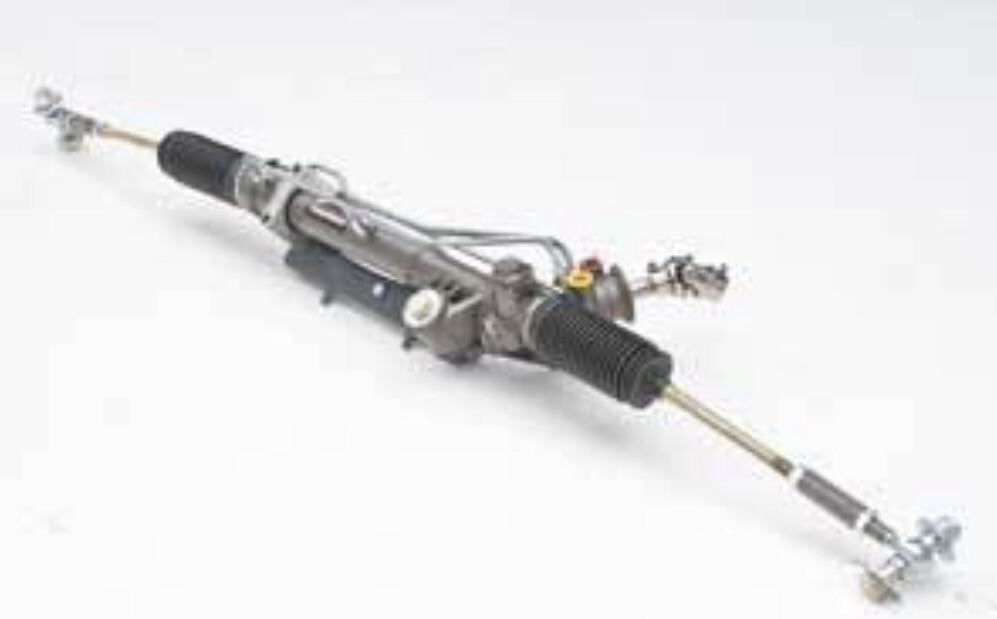

The rack comes with a 3/4” DD U joint tig welded to the steering shaft going to the rack. Therefore, when ordering the steering shaft and U joint you will only need to order the U joint going from the 3/4” DD steering shaft to the steering column. You do not need the U Joint going to the rack. What you see in the second and third pic is what the rack comes with. It also comes with tie rod heim joint ends.

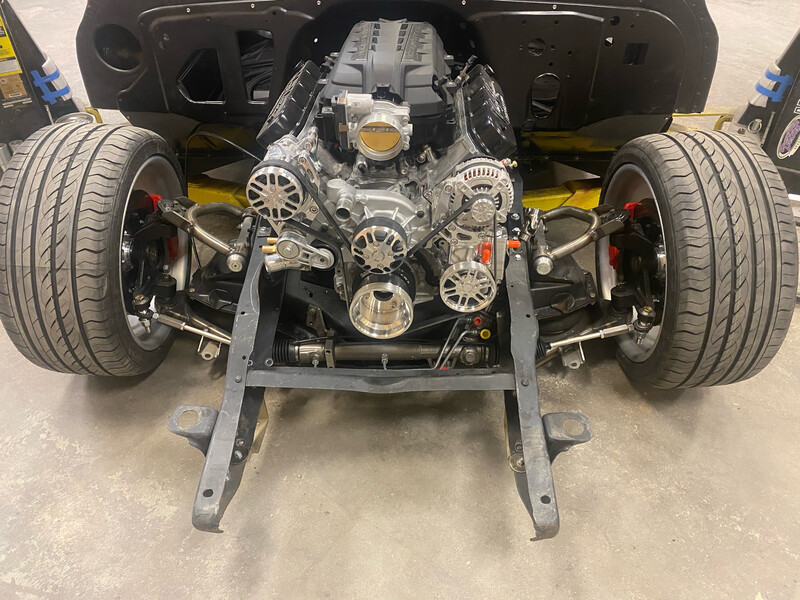

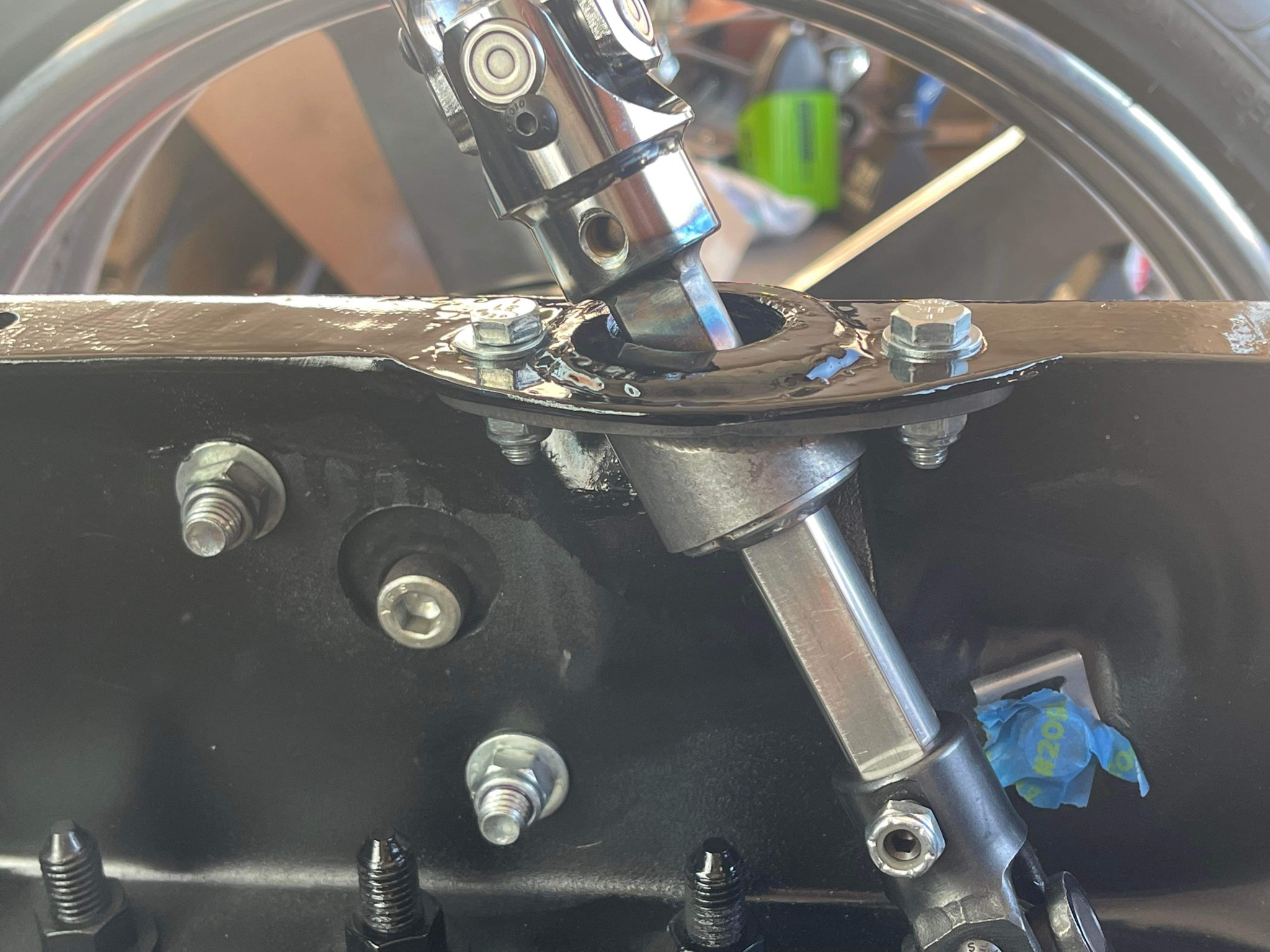

Attention!!! Rack will interfere with the large washer and nut on the lower control arms on the 73-87 trucks. You will need to run aftermarket control arms to run the No Limit rack. The 73-87 frame is a bit taller a more narrow than the 63-72 frame, and will need a little bit of modification. You will need to install a longer steering shaft to reach through the taller Squarebody frame, and you will need to add some metal around the support bearing since the frame is narrower than a 63-72. See pics.

 Call me if you want more info.

High pressure fitting is 18x1.5

Low pressure/return is 16x1.5
